For CROBOTP Industrial Robot Arm 6 Axis Automatic Arc Welding Robotic Arm CRP-RH14 Arm Span 1.4M/1.8M/2M

Product Features:
– Welding robot: support customization, precise positioning, and neat welding
– Simple operation, time-saving and labor-saving, large-screen display, neat welding, convenient maintenance, one-key start
– 6 Axis robot arm has stable performance and is widely used: suitable for automotive industry, metal products, aerospace, fitness equipment, shipbuilding industry, engineering machinery, paper industry, metallurgical industry, etc.
– G4 electrical cabinet: There are multiple buttons to control the robot
– Highly compact design: load 10KG, arm span 1.4m, flexible choice of bottom installation or upside-down installation
– Wide range of applications: perfect for welding, spraying, loading, unloading, handling, sorting, assembly and the like
– Independent control system: adopts a safety relay circuit, and provides external emergency stop with dual circuits to ensure the reliability of emergency stop

Robot Arm's Functional Features:
– The arm span is 1.4 meters. It can be installed on the ground or upside down flexibly.
– With large working space and fast running speed, it is suitable for welding, spraying,loading and unloading, handling, sorting, assembling and other applications.
– The safety emergency stop board is independent of the controller, and the safety relay circuit is adopted to provide double circuit emergency stop to ensure the reliability of emergency stop.
– The robot body cables are made of special cables for flexible robots.
– Built-in three-phase transformer, 380V and 200V isolation, more stable power supply.
– Power supply requirements can be customized for different countries. Built-in three-phase filter can effectively improve the performance of EMC and EMI.
– The robot body is with dual-circuit gas pipe and meets welding and handling
requirements
– The inner diameter of 6-axis middle hole is 46 mm, which can meet the
installation requirements of water-cooled gun and bellows gun.
– It's with highly flexible built-in welding cable.

Because the weight is 325kg to 350kg,Please contact us before order placed, we need to confirm the shipping method and Customs clearance issue

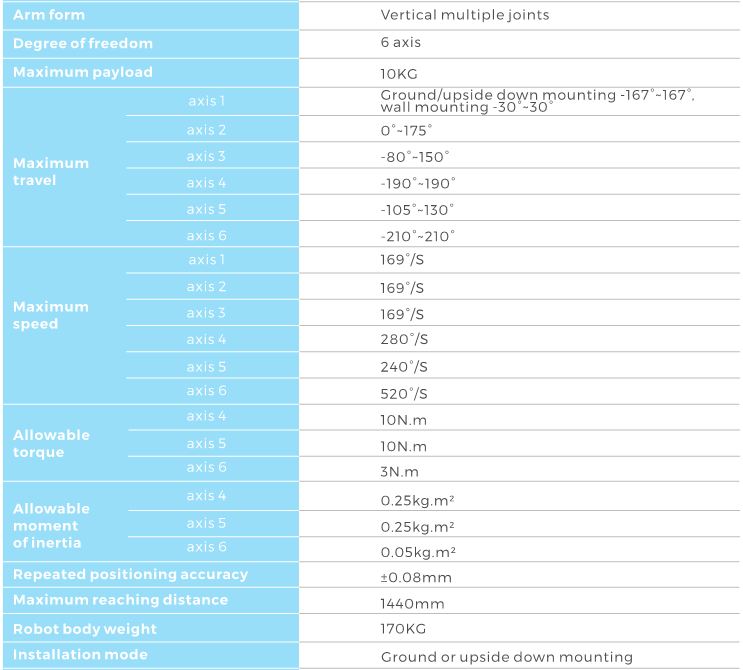

Robot Body Technical Parameters:

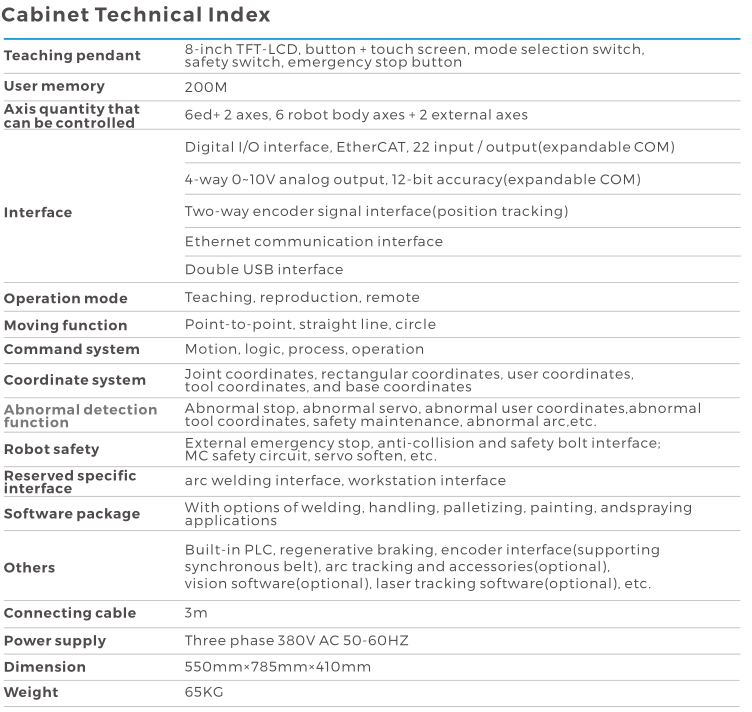

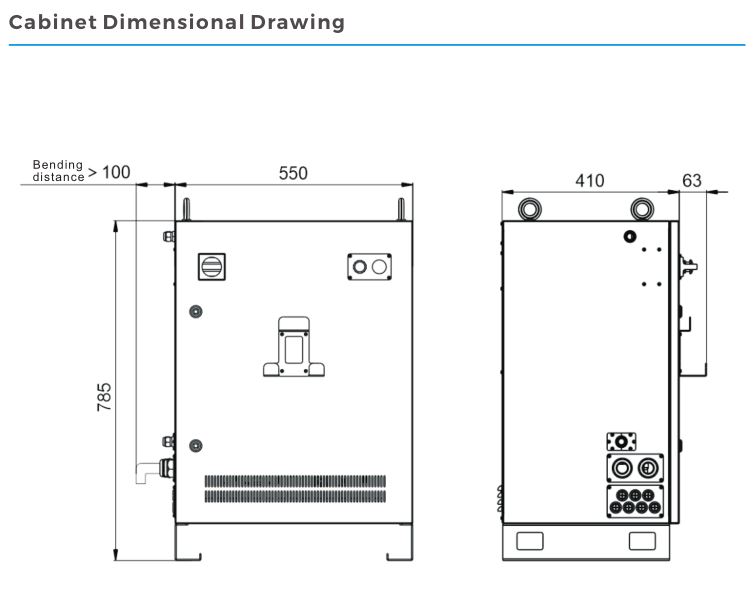

G4 Industrial Robot Electrical Cabinet:
* Double switching power supply
* Built-in safety circuit
* Three-phase three-wire power supply filter
* Three-phase dry-type servo isolation transformer

Package Included:
– 1 x Set of Robot Arm
